WHOOSK
User Research
Anatomical Research
Product Opportunity
Sketches
Prototypes
Final
Project Brief
Timeline
Collaborators
My Role
Redesign the whisk to subscribe to prioritize ergonomics for professional use.
4 weeks
William Rothman
I focused on expert interviews and illustration. William led CAD and sketching. We worked together on prototyping and logo design.

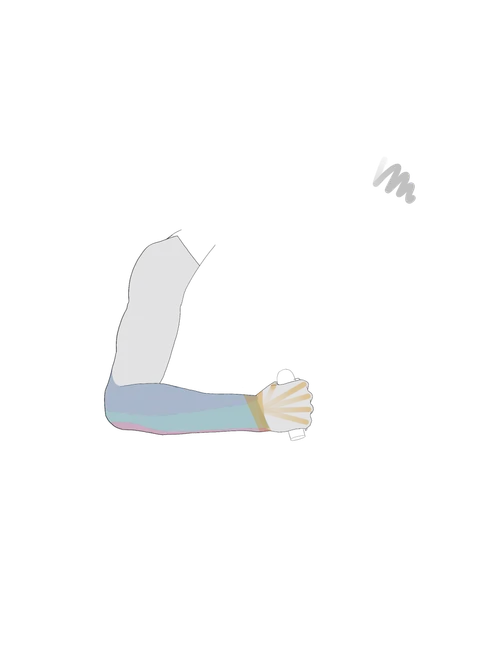

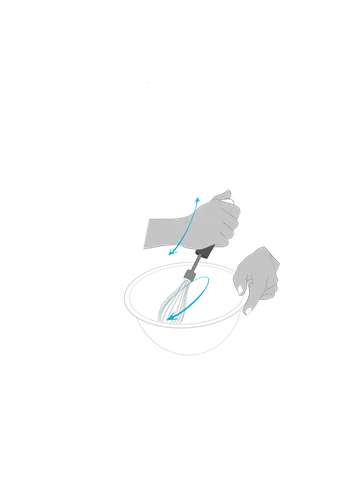

thenar muscles, extensor carpi ulnaris, wrist

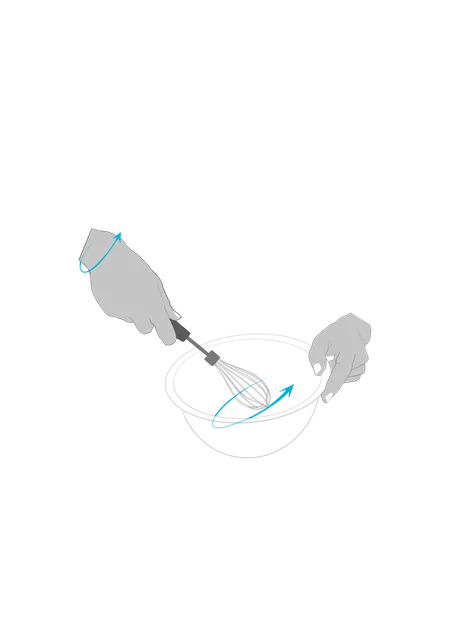

chuck grip

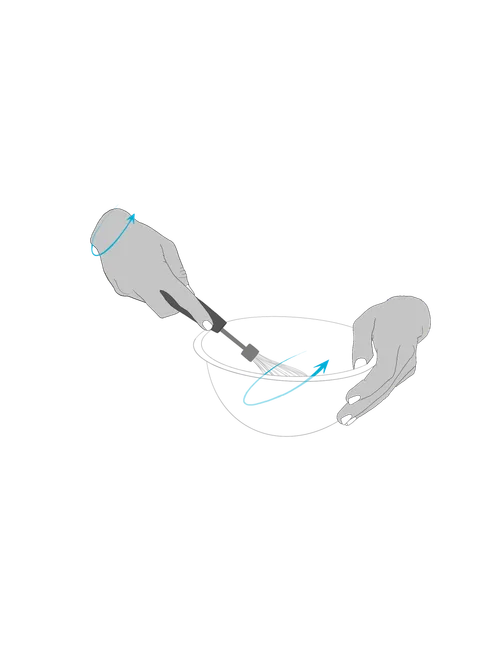

fist grip
diagonal volar grip
The first insight from user testing was that there isn't a standardized way to hold a whisk. Grip styles were contingent to the ingredients and desired result.

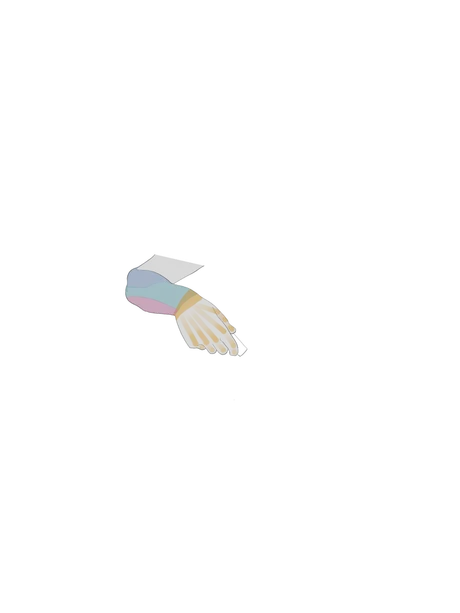

extensor carpi ulnaris and wrist

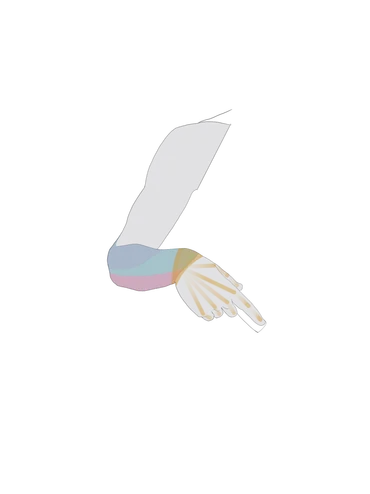

wrist, PIP joint, extensor carpi ulnaris
If I’m whisking for more than 10 minutes, it’s almost always in a pot or pan over heat I feel pain in my forearms mainly.
Erik
Age 31
Location Brooklyn, New York
Occupation Pastry Chef
I would whisk a variety of batters and fillings for around 8 - 10 minutes I’d mainly feel pain in the thenar muscles and carpal tunnel
Jamie
Age 25
Location Brooklyn, New York
Occupation Line Cook
When whisking, I feel fatigue first in the forearm and then bicep. If I were using a whisk it would be to combine ingredients, like you’re whisking dry ingredients together to mix them well.
Karen
Age 40
Location Manhattan, New York
Occupation Exec Pastry Chef
design opportunities
universal design
handle variables
ergonomics
user group
use
experience
materials
recycle
cork
replaceable tines
recyclable material
stainless steel
aluminum
biodegradable plastic
silicone
sustainability
storage
functionality
cleaning
drawer
interchangeable whisk heads
dishwasher
hanging
sink
brush
separate from handle
sponge
crock
handle
tines
weight
thickness
length
shape
professional chef
pinch
throttle
backhand
tapered
grooved
organic
round
should feel balanced
dough
flat
wet dry hot
pan pot bowl
ingredients
vessel
spiral
whisk type
mixing
modular
ambidextrous
accommodate different grips
french
balloon
refinements
V7 was selected filleted edges of channel and hull of whisk, added hang hole.
v6
v7
refinements
V5 was selected. thumb channel was made wider
v4
v5
refinements
V3 was the only model selected implemented a flat side per expert user’s suggestion
v1
phase one
v2
v3
V1 and V2 are too small, wouldn’t allow me to drive through a thicker batter. V3 feels unbalanced.
I’d like to see a flat side on V3
Widen the channel on V5, my thumb feels restricted when changing grip.
V7 feels too long, forcing my hand at the top.
phase two
phase three
Hover over dots for callouts!

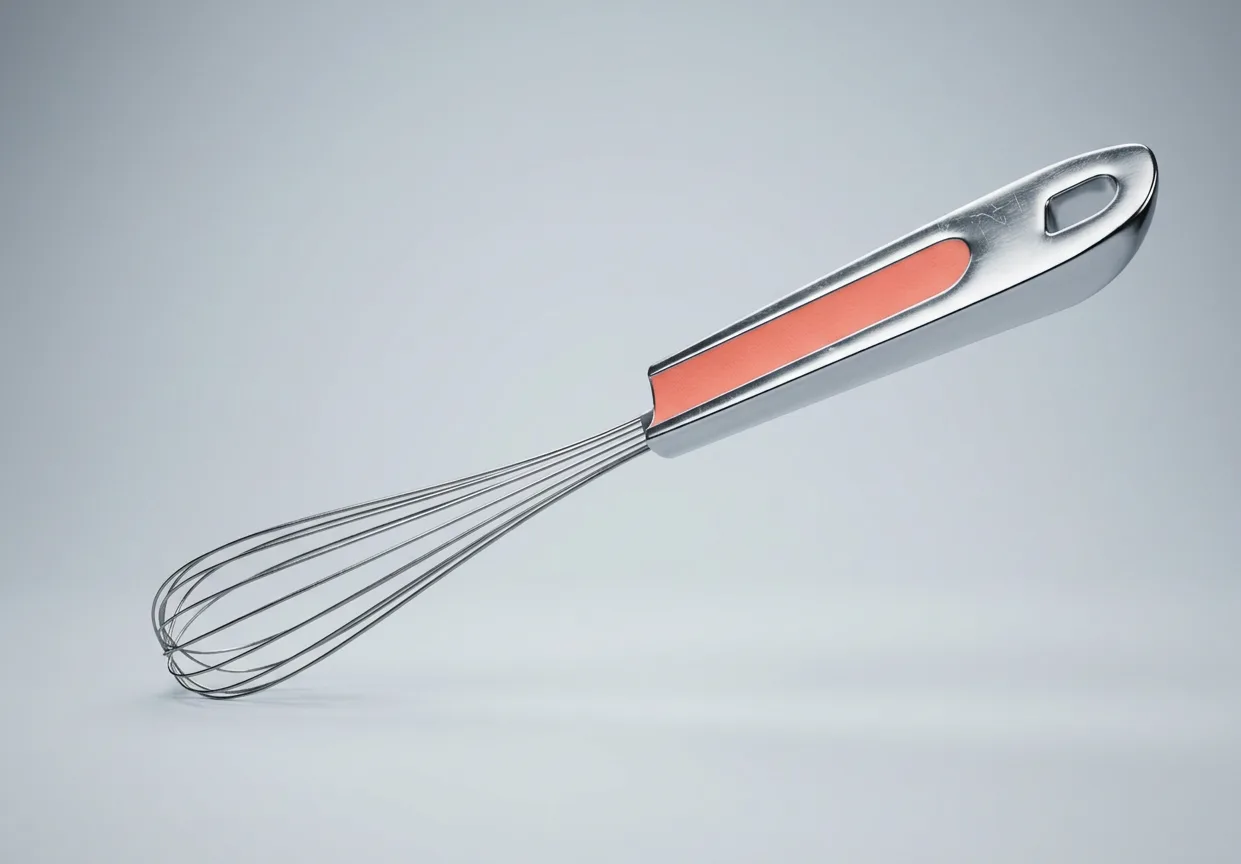

Inset silicone prevents slipping & wide channel encourages thumb indexing
Eyelet for storage
Flat side for neutral grip
Flat side for neutral grip
